AML-6 XC Version

AML-6, The XC – (Dual Capability) Version

The premium version of the AML-6 includes both data logging and real-time streaming features. This dual capability version of the sonde is valuable to those who value redundancy, either redundancy of data logging or redundancy of power supply. Similarly, this version of AML-6 is useful for those who have requirements that vary mission by mission.

Delivery time: 10 - 14 business days

SKU: AML-6-XC-VERSION Categories: ,

Description

AML-6 Instruments

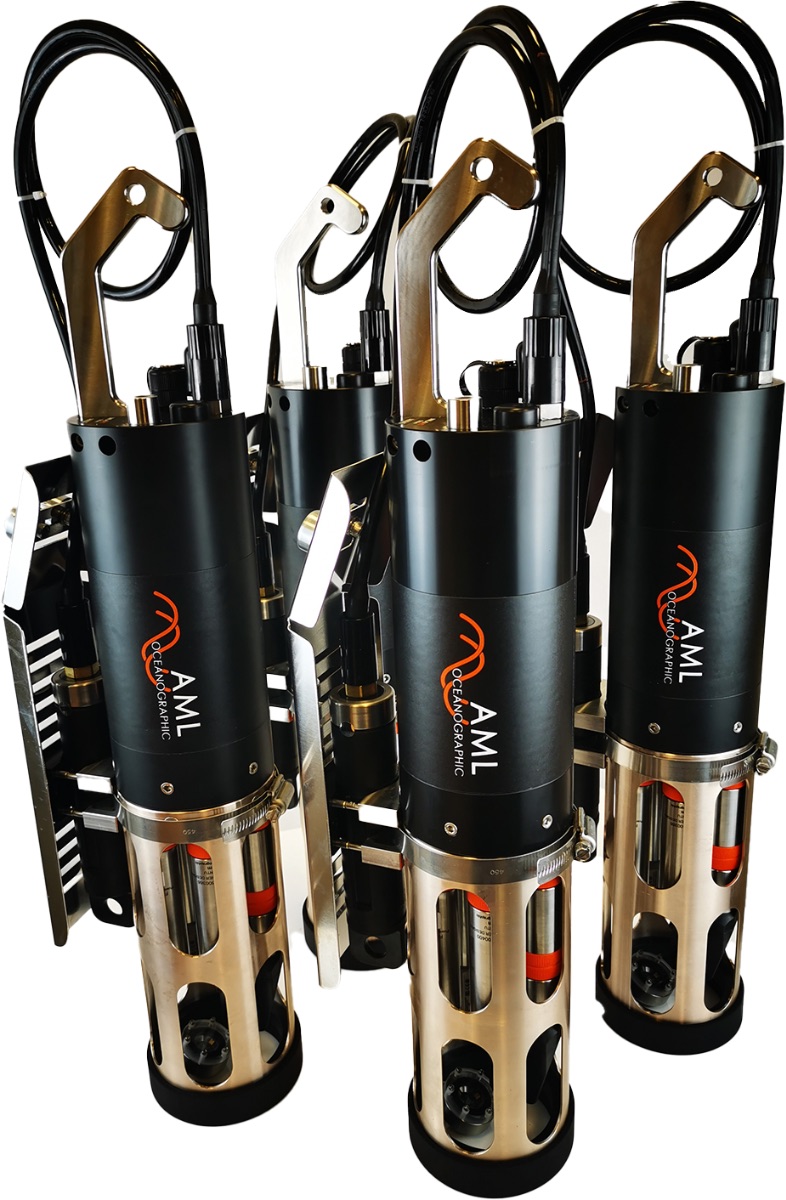

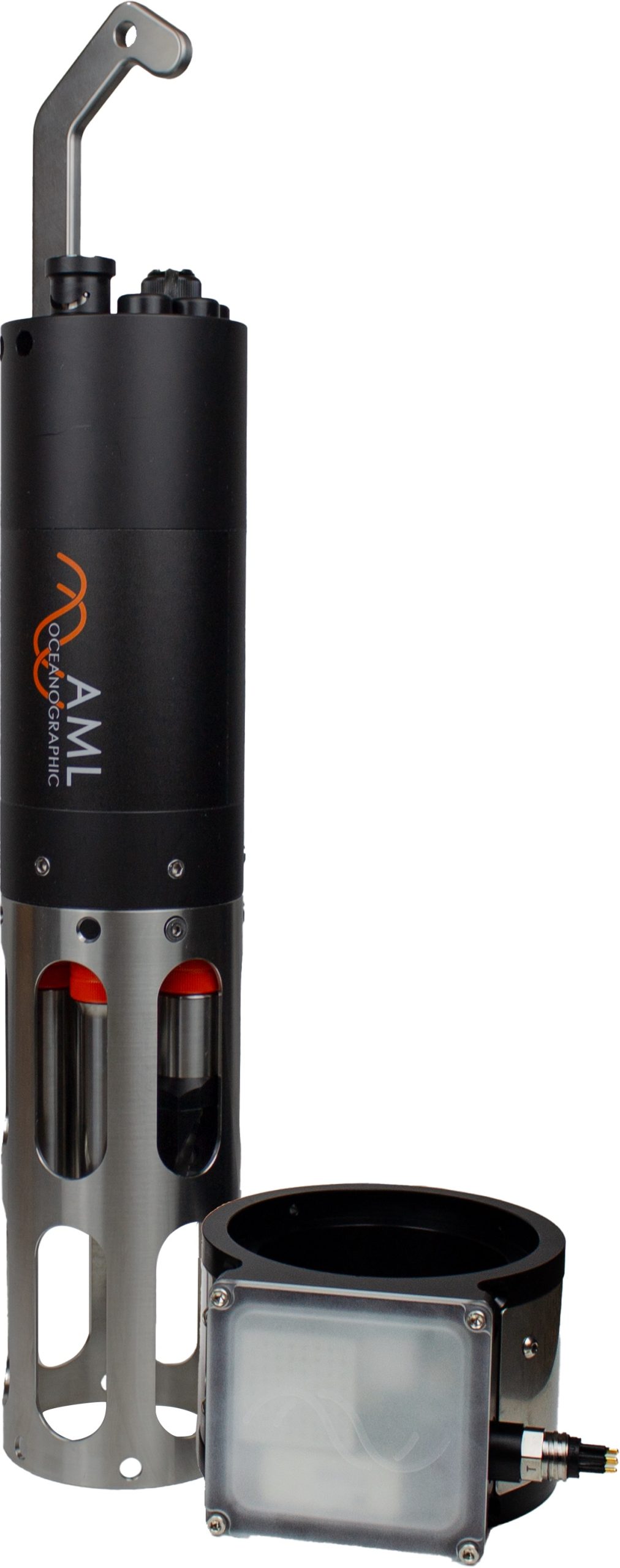

The AML-6 is a multi-parameter sonde, designed to combine CTD data with other oceanographic parameters such as Dissolved Oxygen, pH, ORP, or Fluorometric sensors. This instrument has six sensor ports on the endcap; the sensor payload is modular and can be field-swapped to meet project requirements. The AML-6 can be equipped with UV Biofouling Control, ensuring data quality and extended maintenance-free time-frames, without contaminating the oceans with TBT or other harmful chemicals.

Specifications

Sensor port capacity 6
Optional external sensors Yes
Optional biofouling control Street Lamp UV for Up to 500 m
GPS Yes (500 m)
Data communications WiFi (500 m) / USB-C / RS232 / RS485
Input voltage 8-30 VDC
Housing material Acetal / Titanium
Depth rating 500 m / 6000 m
Protective cage material Stainless Steel / Copper Nickel
Dimensions 600 x 100 mm
Weight in air 4.0 kg (500 m)
4.9 kg (6000 m)
Weight in water 2.1 kg (500 m)
2.8 kg (6000 m)
