AML-1, The RT – (Real-Time) Version

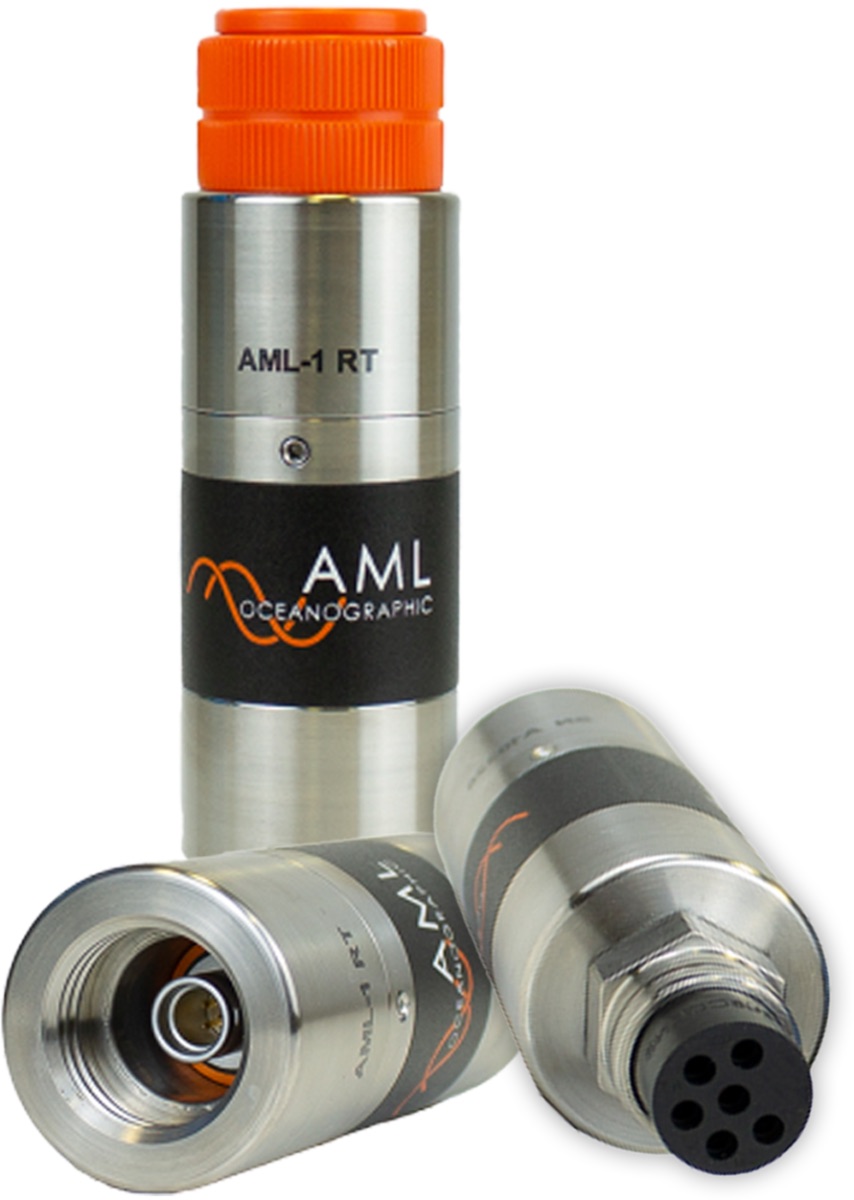

The AML-1 is most frequently used with a sound velocity sensor for beam steering in multibeam sonar applications. The same instrument can also be deployed on buoys and underwater observatories – platforms with a fixed depth – to collect CT data and calculate salinity and density. The probe is sometimes used with Turbidity or Pressure sensors. The AML-1 RT is designed for real-time data streaming and has neither battery nor memory. A bulkhead connector brings power to the instrument and streams data back to the user.
Delivery time: 10 - 14 business days

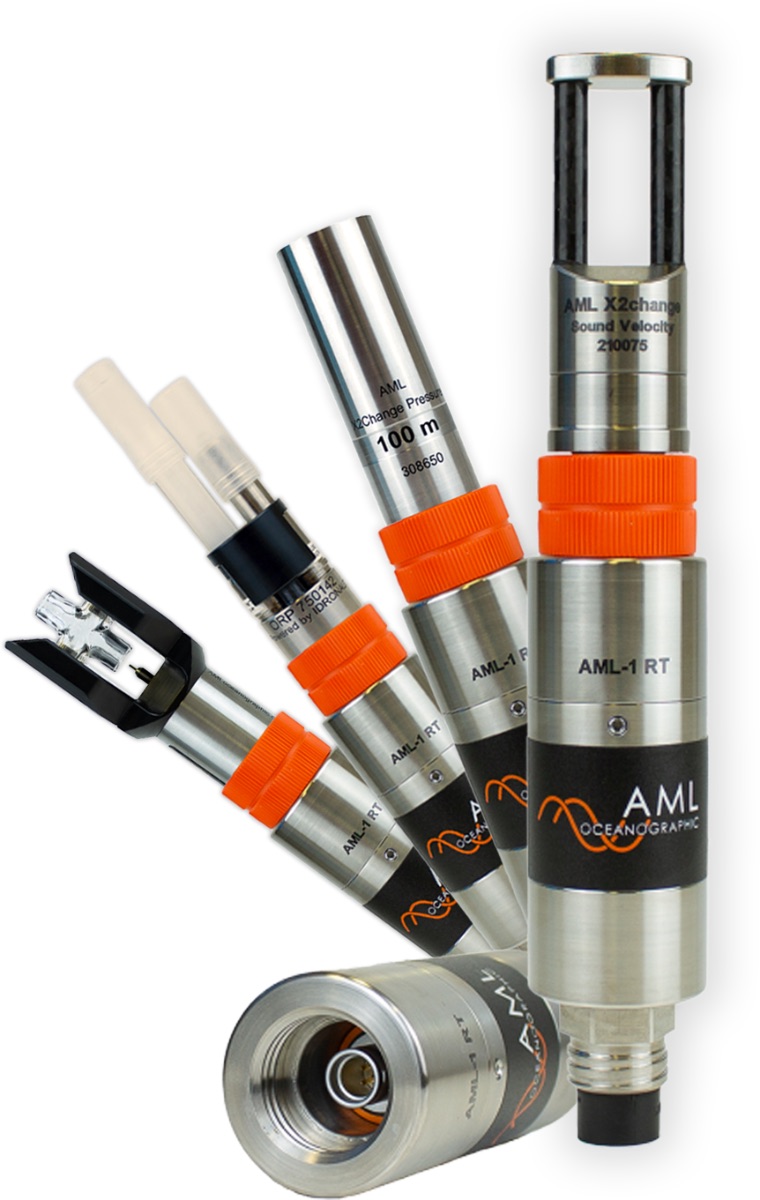

The AML-1 is a single-sensor probe with flexibility when it comes to data collection. AML’s modular approach to sensor installation means that a single AML-1 can be used to collect conductivity OR sound velocity OR turbidity OR pH or any other desired parameter. The AML-1 has one sensor port on the endcap. Certain sensors such as CT and SVT are dual parameter. This means that in fixed-depth applications, the AML-1 can be used to measure CT and calculate salinity and density.
| Sensor port capacity | 1 |
| Data communications | RS232 / RS485 |
| Input voltage | 8-30 VDC |
| Housing material | Titanium |
| Depth rating | 6000 m |
