Watertight Enclosure Tubes

Name: Watertight Enclosure Tubes
SKU: WTE-LOCKING-TUBE-R1-VP
Availability: OutOfStock

€ 24,00 – € 500,00 excl. VAT

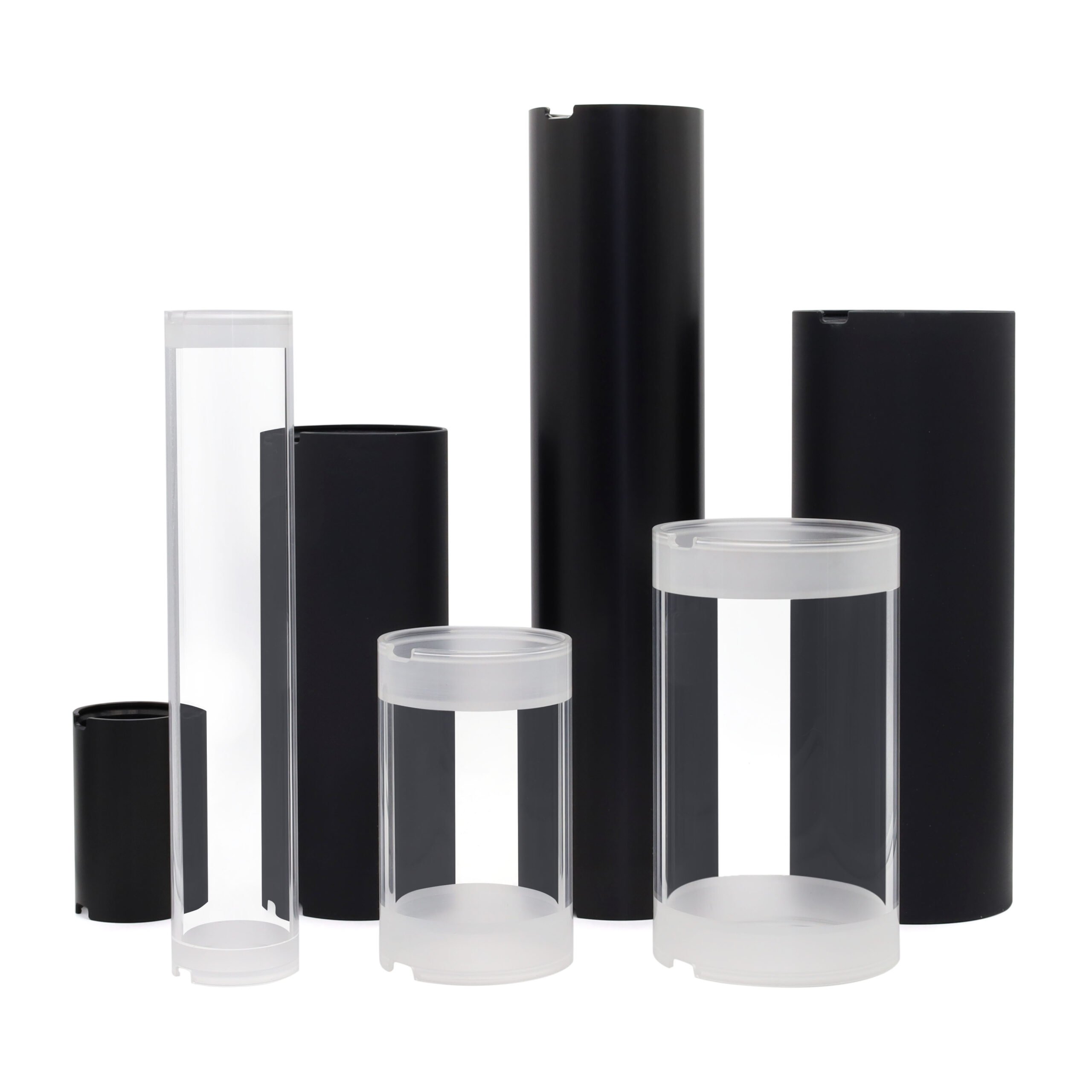

Tubes for the 2″, 3″, 4″, 5″, 6″, and 8″ Series Watertight Enclosures, available in a variety of lengths and in clear cast acrylic plastic and aluminum materials. These are the second generation of these tubes with precision machined O-ring interfaces, a locking cord, and anti-rotation feature. Rated to depths up to 1000 meters.

If you’re looking for a complete underwater enclosure, check out the Watertight Enclosure Configuration page.

Delivery time: 10 - 14 business days

Inner Diameter

Material - Length - Depth - Rating

Clear

SKU: WTE-LOCKING-TUBE-R1-VP Category: Cylindrical Locking Series (2-8")

Description

These 2″, 3″, 4″, 5″, 6″, and 8″ locking tubes are available in a variety of lengths and in both cast acrylic plastic and anodized 6061-T6 aluminum. These tubes are a substantial upgrade over the first generation of watertight enclosure tubes.

Both the acrylic and aluminum tube options have precision machined O-ring interfaces at each end, ensuring a consistent and reliable fit with the sealing flange. A smooth surface finish ensures proper sealing between the O-ring flange and the tube. Also machined into the ends is a gland for a locking cord and a slot for cord insertion. You can read more about the locking feature and see a diagram of how it works on the main watertight enclosure product page.

The slot for cord insertion doubles as an anti-rotation feature, mating with a feature on the flange. This keeps the flange in a consistent orientation with the tube and prevents the user from rotating the flange and damaging anything inside the enclosure.

The tubes are available individually here, but you can configure a complete watertight enclosure from the watertight enclosure configuration page.

Because of the precision machined interface, the tubes are no longer available in custom lengths.

Contents

1 x Tube (based on selection)

Specifications

These depth ratings are for acrylic tubes and aluminum tubes not affected by racking groove derating. See table below for derated depth limits.

Series Diameter	Tube Material/Finish	Tube ID (A)	Tube OD (B)	Overall Length¹ (C)	Weight	Depth Rating ²	Part Number
50 mm (2")	Aluminum 6061-T6, type III anodized	50.0 ± 0.5 mm	58.0 ± 0.2 mm	100 mm	169 g	1000 m	BR-100534-100
				150 mm	261 g		BR-100534-150
				300 mm	536 g		BR-100534-300
	Cast Acrylic	49.5 ± 1.5 mm	58.0 ± 0.5 mm	100 mm	75 g	225 m	BR-100230-101
				150 mm	115 g	130 m	BR-100230-151
				300 mm	238 g	100 m	BR-100230-301
75 mm (3")	Aluminum 6061-T6, type III anodized	79.0 ± 0.5 mm	86.5 ± 0.3 mm	150 mm	328 g	1000 m	BR-100611-150
				240 mm	530 g	1000 m	BR-100611-240
				300 mm	665 g	900 m	BR-100611-300
				400 mm	890 g	750 m	BR-100611-400
	Cast Acrylic	76.2 ± 2.0 mm	88.9 ± 0.7 mm	150 mm	264 g	275 m	BR-102649-150
				240 mm	442 g	150 m	BR-102649-240
				300 mm	560 g	135 m	BR-102649-300
				400 mm	758 g	120 m	BR-102649-400
100 mm (4")	Aluminum 6061-T6, type III anodized	103.0 ± 0.5 mm	112.0 ± 0.3 mm	200 mm	707 g	1000 m	BR-100195-200
				300 mm	1066 g	1000 m	BR-100195-300
				400 mm	1426 g	800 m	BR-100195-400
	Cast Acrylic	101.6 ± 2.1 mm	114.3 ± 0.8 mm	200 mm	488 g	140 m	BR-101052-200
				300 mm	746 g	100 m	BR-101052-300
				400 mm	1004 g	60 m	BR-101052-400
130 mm (5")	Aluminum 6061-T6, type III anodized	130 ± 0.5 mm	138.7 ± 0.3 mm	300 mm	1450 g	1000 m	BR-101409-300
130 mm (5")	Aluminum 6061-T6, type III anodized	130 ± 0.5 mm	138.7 ± 0.3 mm	500 mm	2441 g	500 m	BR-101409-500
150 mm (6")	Aluminum 6061-T6, type III anodized	150 ± 0.5 mm	163.9 ± 0.3 mm	300 mm	2510 g	1000 m	BR-101411-300
150 mm (6")	Aluminum 6061-T6, type III anodized	150 ± 0.5 mm	163.9 ± 0.3 mm	500 mm	4360 g	1000 m	BR-101411-500
200 mm (8")	Aluminum 6061-T6, type III anodized	200 ± 0.5 mm	214.2 ± 0.3 mm	300 mm	3420 g	1000 m	BR-101412-300
200 mm (8")	Aluminum 6061-T6, type III anodized	200 ± 0.5 mm	214.2 ± 0.3 mm	500 mm	5915 g	1000 m	BR-101412-500
¹ Overall length tolerance is ± 0.5 mm. ² The depth ratings for cast acrylic components are applicable only for short-term submersions lasting less than two weeks. For longer submersion, we suggest using aluminum components only.

The depth limits below are for aluminum tubes affected by racking groove derating.

Series Diameter	Tube Material/Finish	Tube ID (A)	Tube OD (B)	Overall Length¹ (C)	Weight	Depth Rating ²	Part Number
50 mm (2")	Aluminum 6061-T6, type III anodized	50.0 ± 0.5 mm	58.0 ± 0.2 mm	100 mm	169 g	500 m	BR-100534-100
				150 mm	261 g		BR-100534-150
				300 mm	536 g		BR-100534-300
75 mm (3")	Aluminum 6061-T6, type III anodized	79.0 ± 0.5 mm	86.5 ± 0.3 mm	150 mm	328 g	500 m	BR-100611-150
				240 mm	530 g	500 m	BR-100611-240
				300 mm	665 g	450 m	BR-100611-300
				400 mm	890 g	375 m	BR-100611-400
100 mm (4")	Aluminum 6061-T6, type III anodized	103.0 ± 0.5 mm	112.0 ± 0.3 mm	200 mm	707 g	500 m	BR-100195-200
				300 mm	1066 g	500 m	BR-100195-300
				400 mm	1426 g	400 m	BR-100195-400
130 mm (5")	Aluminum 6061-T6, type III anodized	130 ± 0.5 mm	138.7 ± 0.3 mm	300 mm	1450 g	500 m	BR-101409-300
130 mm (5")	Aluminum 6061-T6, type III anodized	130 ± 0.5 mm	138.7 ± 0.3 mm	500 mm	2441 g	250 m	BR-101409-500
150 mm (6")	Aluminum 6061-T6, type III anodized	150 ± 0.5 mm	163.9 ± 0.3 mm	300 mm	2510 g	500 m	BR-101411-300
150 mm (6")	Aluminum 6061-T6, type III anodized	150 ± 0.5 mm	163.9 ± 0.3 mm	500 mm	4360 g	500 m	BR-101411-500
200 mm (8")	Aluminum 6061-T6, type III anodized	200 ± 0.5 mm	214.2 ± 0.3 mm	300 mm	3420 g	500 m	BR-101412-300
200 mm (8")	Aluminum 6061-T6, type III anodized	200 ± 0.5 mm	214.2 ± 0.3 mm	500 mm	5915 g	500 m	BR-101412-500
¹ Overall length tolerance is ± 0.5 mm. ² Temporary derating for aluminum tubes with racking grooves.

Additional information

Inner Diameter

100mm (4"), 130mm (5"), 150mm (6"), 200mm (8"), 50mm (2"), 75mm (3")

Material - Length - Depth - Rating

Aluminum – 100 mm (3.9") – 1000 m, Aluminum – 150 mm (5.9") – 1000 m, Aluminum – 200 mm (7.8") – 1000 m, Aluminum – 240 mm (9.5") – 1000 m, Aluminum – 300 mm (11.8") – 1000 m, Aluminum – 300 mm (11.8") – 900 m, Aluminum – 400 mm (15.6") – 750 m, Aluminum – 400 mm (15.6") – 800 m, Aluminum – 500 mm (19.6") – 1000 m, Aluminum – 500 mm (19.6") – 500 m, Cast Acrylic Plastic – 100 mm (3.9") – 225 m, Cast Acrylic Plastic – 150 mm (5.9") – 130 m, Cast Acrylic Plastic – 150 mm (5.9") – 275 m, Cast Acrylic Plastic – 200 mm (7.8") – 140 m, Cast Acrylic Plastic – 240 mm (9.5") – 150 m, Cast Acrylic Plastic – 300 mm (11.8") – 100 m, Cast Acrylic Plastic – 300 mm (11.8") – 135 m, Cast Acrylic Plastic – 400 mm (15.6") – 120 m, Cast Acrylic Plastic – 400 mm (15.6") – 60 m
