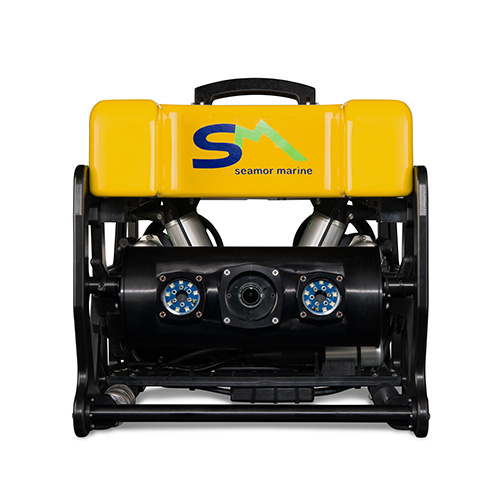

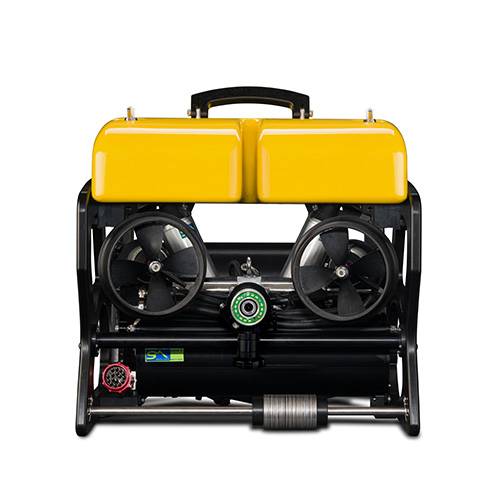

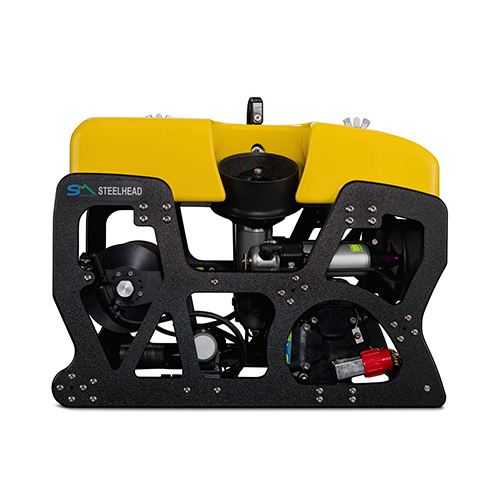

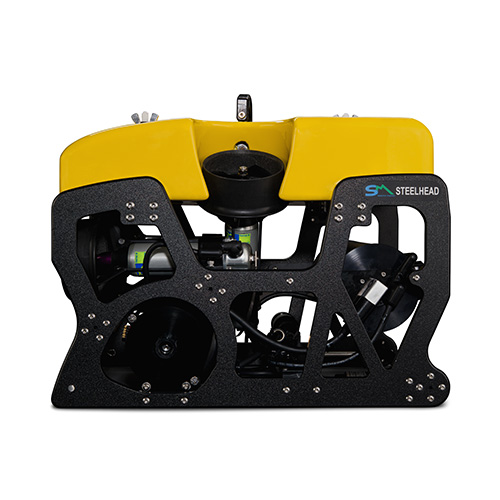

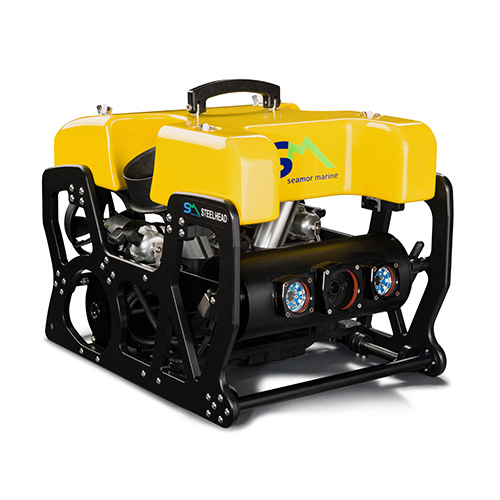

SEAMOR STEELHEAD

VEHICLE DIMENSIONS & ATTRIBUTES

• Depth Rating: 300 m (1,000 ft)
• Size (L x W x H): 502 mm x 384 mm x 373 mm (19.8” x 15.1” x 14.7”)
• Diagonal: 515 mm ( 20.3”)
• Weight in air: ~ 21 Kg (47 lbs) (standard vehicle trimmed for fresh water)
• Construction: Anodized aluminum, stainless steel, syntactic foam and marine-grade polymers

THRUSTERS

• Configuration: Two (2) horizontal and two (2) vertical/lateral thrusters. Built-in short-circuit protection on each channel
• Speed: 1.75 knots (dependent on environment and configuration)

FORWARD CAMERA AND LIGHTS

• Format: NTSC or PAL (full broadcast-quality)
• Focus: Manual and Automatic
• Zoom: 3x optical, up to 32x total zoom
• Tilt Range: +/- 90 degree rotation
• Lights: Two (2) x 1,500 lumens (3,000 lumens) dimmable high-intensity LED
• Lasers: Optional parallel green lasers on 150 mm (6") baseline for scale reference

AUXILIARY CAMERA AND LIGHTS

• Type: Colour or Black & White, low light
• Format: NTSC or PAL
• Focus: Fixed
• Lights: Two (2) X 1,500 lumens (3,000 lumens total) on/off control

TETHER

• Length: 165 m (540 ft) standard starting length; 335 m (1,100 ft) standard long length; on manual reel. Other lengths available upon request
• Diameter: 10 mm / 0.4" (nominal)
• Breaking strength: 700 kg f, Kevlar reinforced
• Weight in water: Neutrally buoyant in fresh water

SENSORS

• Pressure / Depth
• Compass heading
• Pitch and roll
• Dedicated leak and temperature sensors in both the electronics and camera canisters

CONTROL SYSTEM

• Pelican Case mounted controller
• Built-in 15” LCD monitor
• Digital video recorder included
• Video overlay: depth, heading, auto-depth, auto-heading, pitch/roll, tether turns counter, date & time
