SEA OTTER REEL
SEA OTTER REEL
SEA OTTER REEL
SEA OTTER REEL

SEA OTTER REEL

Request a quote

excl. 19% VAT plus Shipping Costs

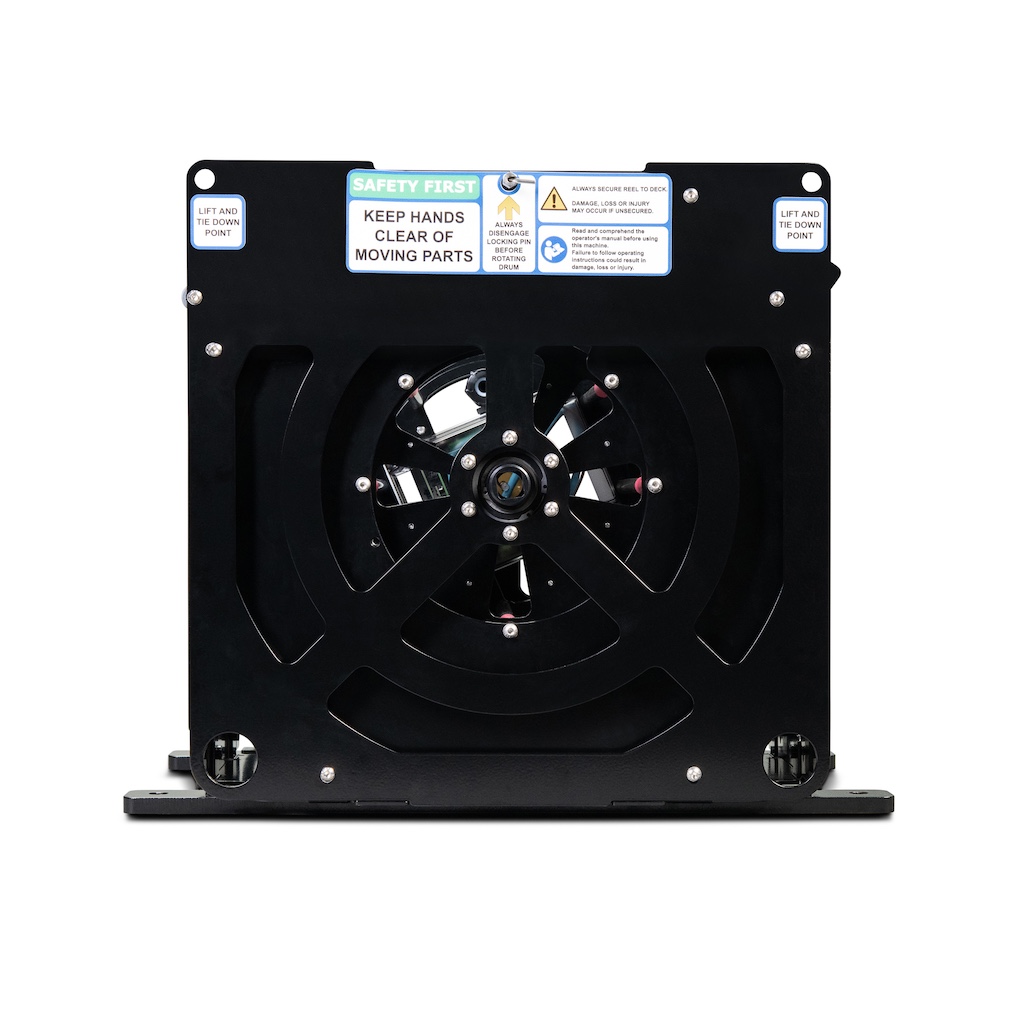

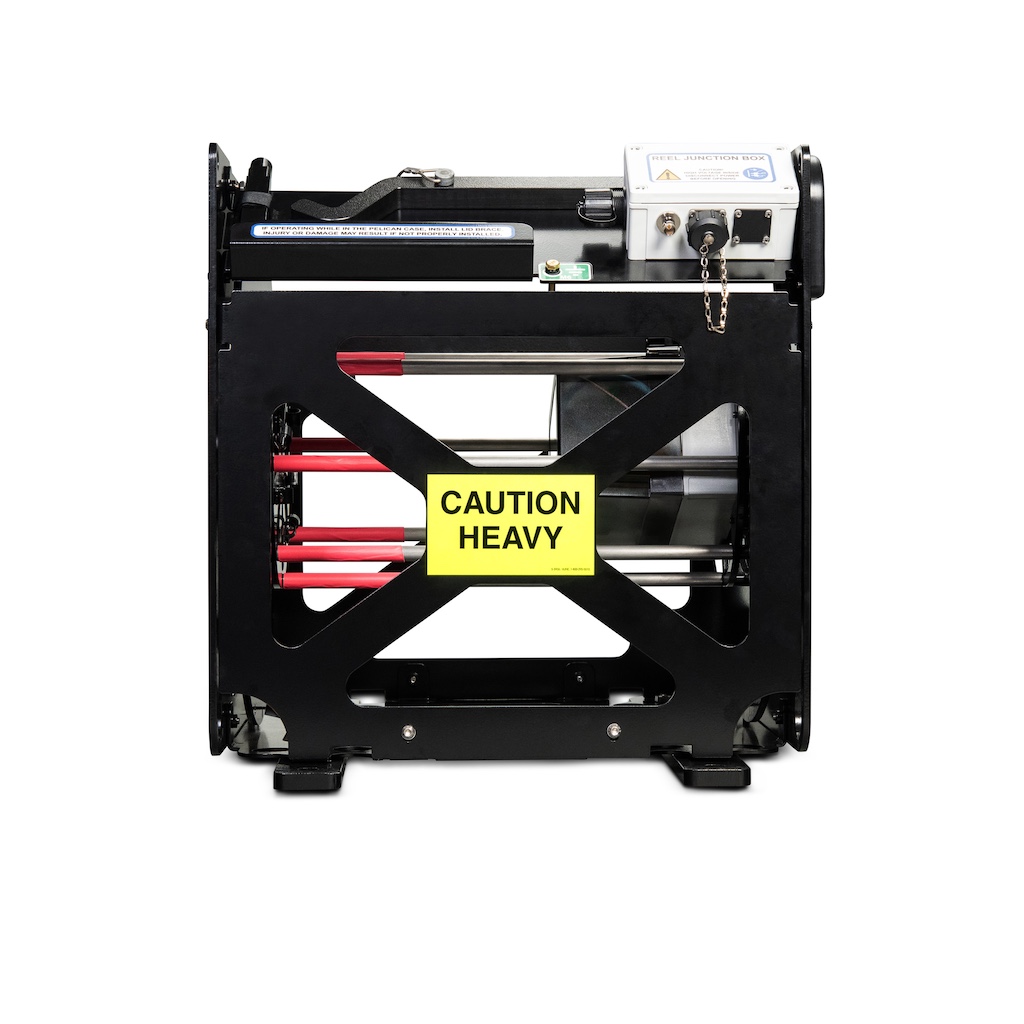

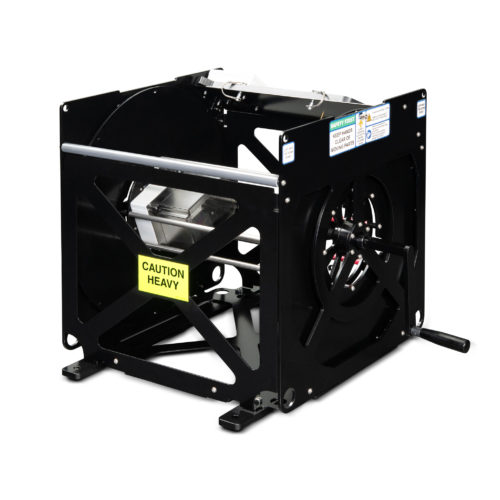

SEAMOR Marine manufactures its own line of durable, high-quality reels like this Sea Otter Reel for tether management and storage. Made from high grade aluminum and stainless steel, our reels can accommodate a variety of tether sizes, slip rings, and incorporate waterproof hub enclosures for tether interface electronics (i.e. fiber optic receivers, multiplexors, etc).

Delivery time: 10 - 14 business days

SKU: SEAMOR-SEA-OTTER-REEL Category:

Description

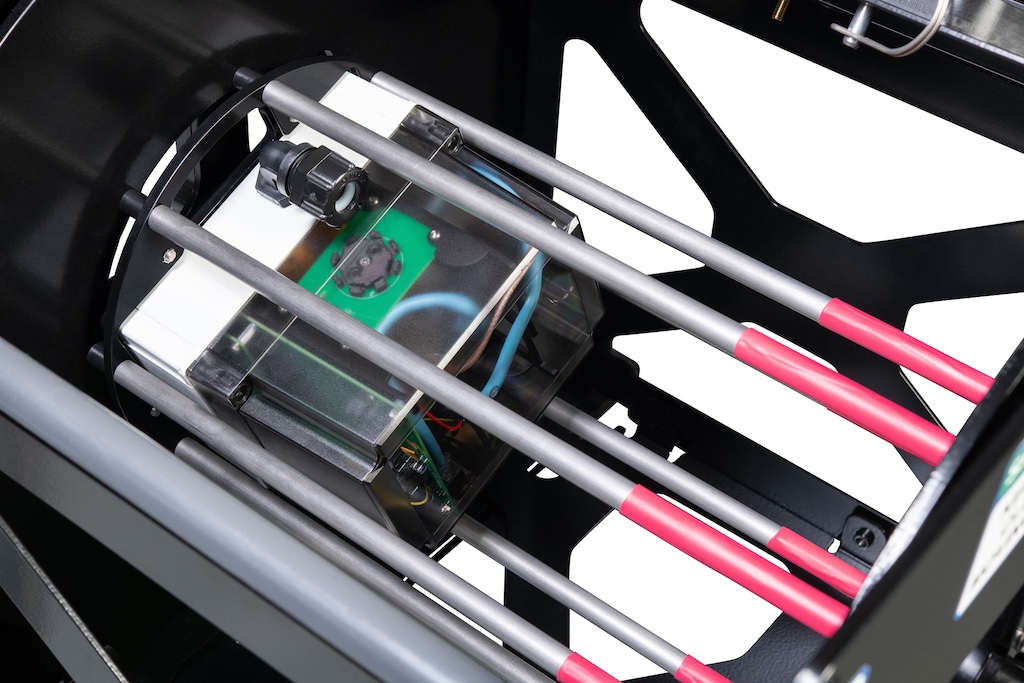

Reels can be supplied open or securely mounted in a rugged Pelican case. A lightweight and compact option for your SEAMOR ROV or to meet your custom tether management needs, a SEAMOR Sea Otter Reel can be counted on for years of reliable performance in any environment. The water resistant hub enclosure can be removed from the reel for servicing without having to unspool the cable.

Specifications

Sea Otter 50 Reel

Overall Dimensions:

  • Overall Depth: 19.1” (485mm)
  • Overall Width: 19.1” (485mm)
  • Overall Height: 18.9” (480mm)

Drum Dimensions:

  • Flange Diameter: 18.1” (460mm)
  • Core Diameter: 9” (230mm)
  • Core Width: 16.3" (415mm)
  • Optionally mounted in a Pelican Protector 350 Case or on Multi-Position Mounting Rails.

Sea Otter 100 Reel

Overall Dimensions:

  • Overall Depth: 23.0” (585mm)
  • Overall Width: 23.0” (585mm)
  • Overall Height: 22.8” (580mm)

Drum Dimensions:

  • Flange Diameter: 22.0” (560mm)
  • Core Diameter: 9.0” (230mm)
  • Core Width: 20.3” (515mm)
  • Optionally mounted in a Pelican Protector 370 Case or on Multi-Position Mounting Rails.

Product safety

Manufacturer information

SEAMOR Marine Ltd.
1914 Northfield Road
Nanaimo, BC V9S 3B5 Canada

Person responsible for the EU

Underwater International Germany GmbH
Tucholskystr. 7
28239 Bremen / Germany
