Description
-
The surface equipment for the Sabertooth includes a surface control unit comprising a computer with the graphical interface software displayed on a monitor and a fibre optic receiver for communication between the surface and a tethered vehicle.
-
Additional operator equipment includes a keyboard and mouse.
-
A WLAN Access Point with an antenna is used when the vehicle is in autonomous mode.
-
A battery charger fitted in a mobile case can recharge the vehicle at the surface. The unit provides a charging power of 3.3 kW (lower power when the input voltage is below 200 VAC) with an input power of 100-264 VAC (single phase).
-
An automated tension control winch is used in conjunction with a tether when working in manual mode.
-
The operator’s monitor runs the graphical user interface (GUI) for vehicle power and control, system diagnostics including remote access for technical support, create mission plans, and display data and video transmitted via the Fibre Optic receiver and tether for manual mode or via the WLAN antenna for autonomous mode.
-

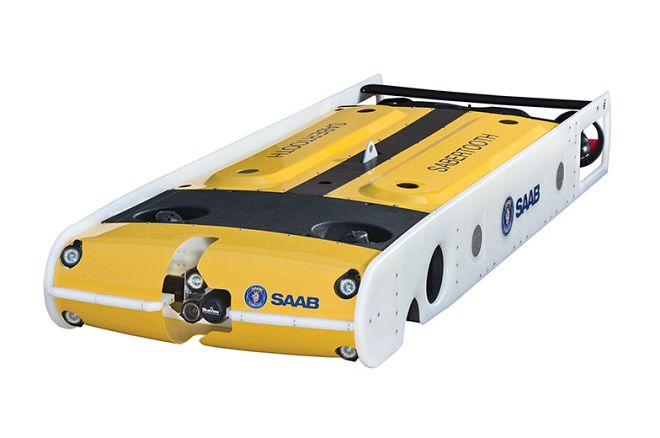

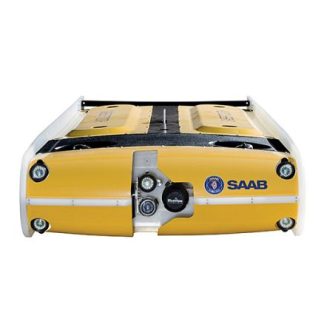

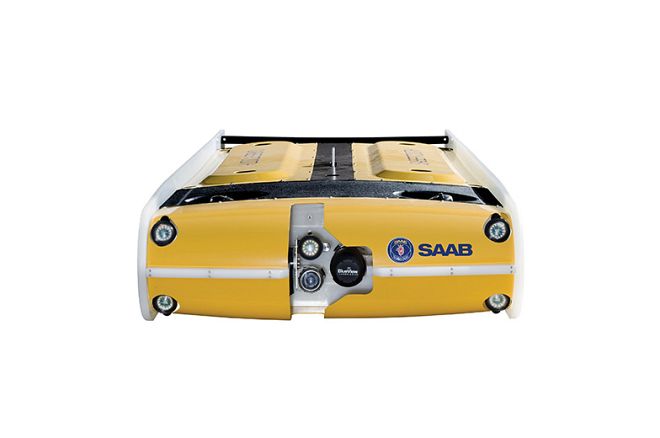

The Sabertooth vehicles are rated to a depth of 1200 m. The Double Hull version also has a 3000 m depth rated option. Both vehicles are fitted with six thrusters; four SM4s and two SM9s on the Single Hull whereas there are six SM9s on the Double Hull.
-
The vehicles are fitted with an electronics pod with a Phins INS incorporated, LED lights, cameras, a depth sensor, sonar options, a Doppler Velocity Log (DVL), a Sound Velocity Profiler (SVP) and a communication unit.
-
Advanced autopilot features are heading, depth, pitch, roll, stabilisation, altitude, station keeping, vector transition, obstacle avoidance and sonar target tracking.
