€ 6,00 – € 16,00 excl. VAT
excl. VAT plus Shipping Costs

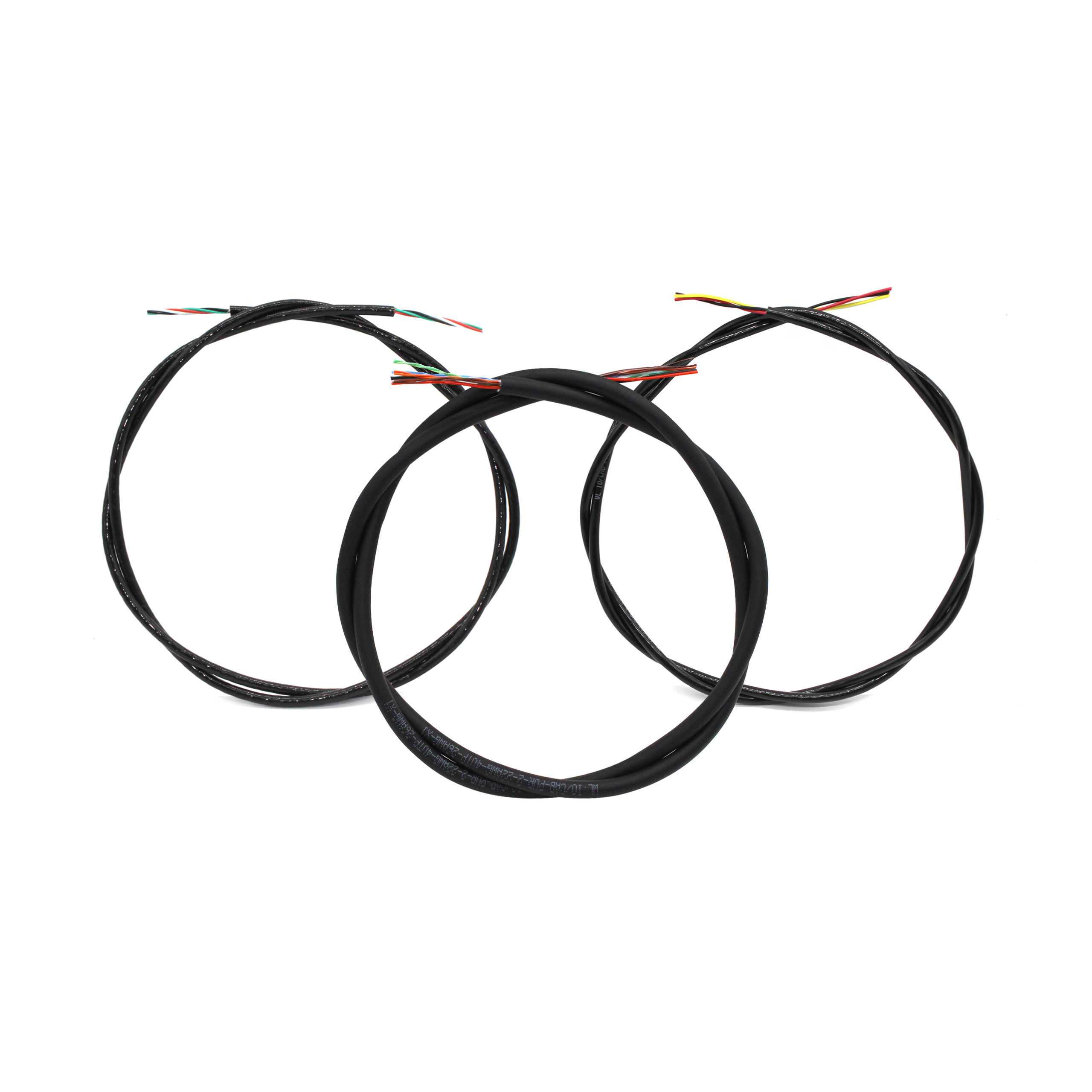

These cables are built specifically for use underwater and used in our products! A polyurethane jacket and flexible conductors make for a rugged cable. Sold by the meter (3.3 ft) and cut to length when you order.
Delivery time: 10 - 14 business days
These cables are built for a wide range of subsea applications, custom made with a pressure-extruded polyurethane jacket and flexible conductors. They are very tough and abrasion resistant.
These cables are used in the the Newton Gripper, the Ping Echosounder, the Lumen Lights, and in countless other applications!
Contents
| Cable | Lumen/Gripper Cable | Ping Cable | Ethernet and Power Cable |
|---|---|---|---|
| Construction | 3-conductors, jacket | 4-conductors, powder separator, jacket | 2-conductor 22 AWG, 4-unshielded twisted pairs 26 AWG, filler, wrap, jacket |
| Diameter | 4.5 mm | 4.5 mm | 7.5 mm |
| Outer Jacket | Pressure-extruded polyurethane | Pressure-extruded polyurethane | Pressure-extruded polyurethane |
| Wrap | - | - | 2-layer non-woven wrap |
| Filler | - | - | String |
| Number of Conductors | 3 | 4 | 2 x 22 AWG 8 x 26 AWG |
| Conductor Gauge | 22 AWG | 24 AWG | 22 AWG 26 AWG (UTP) |
| Conductor Insulation | Polypropylene | Polypropylene | Polypropylene (22 AWG) FEP (UTP) |
| Conductor Insulation Colors | Black, red, yellow | Black, white, green, red | Black Red Blue, blue/white Brown, brown/white Green, green/white Orange, orange/white |
| Static Minimum Bend Radius | 15 mm | 15 mm | 24 mm |
| Compatible WetLink Penetrator | M06-4.5mm-LC M10-4.5mm-LC | M06-4.5mm-LC M10-4.5mm-LC | M10-7.5mm-LC |
| Cable | Ethernet and Power Cable (2x 22 AWG, 4x UTP 26 AWG), High Power Cable (2 conductors, 12 AWG), Lumen/Gripper Cable, Ping Cable (4 conductors, 24 AWG), Ping360 Cable (3 UTP,26 AWG), T200 Thruster Cable (3 conductors, 16 AWG), T500 Thruster Cable (3 conductors, 12 AWG) |
|---|
