Description
-
Two Surface Power Supply Units and a Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container.
-
Surface Equipment includes Hand Control Unit, keyboard and two colour monitors. Additional hand control units are included with ROVs fitted with a manipulator system.
-
Cabin Junction Box for connections between the surface and subsea.
-
Fibre Optic MUX with Video, Serial Data and Ethernet interfaces. Additional MUX options available.
-
Available as a free swimming ROV or in conjunction with a Type 8 Tether Management System (TMS) for depths up to 800 m.
-

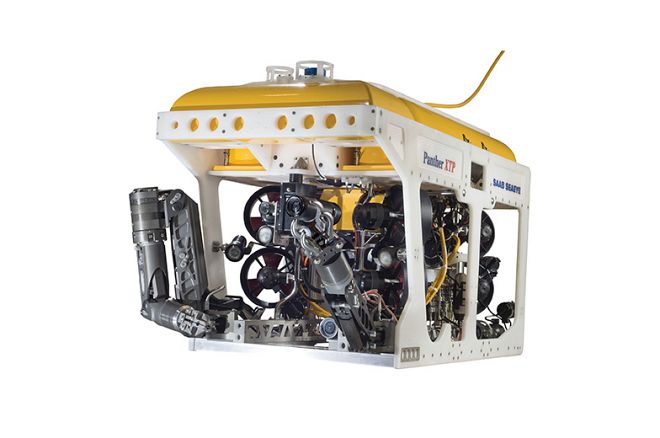

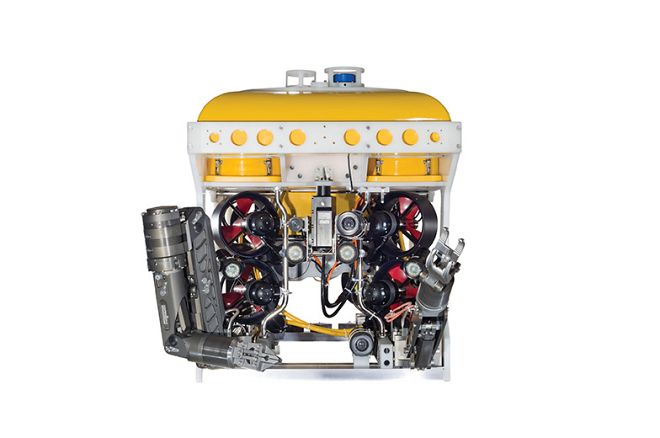

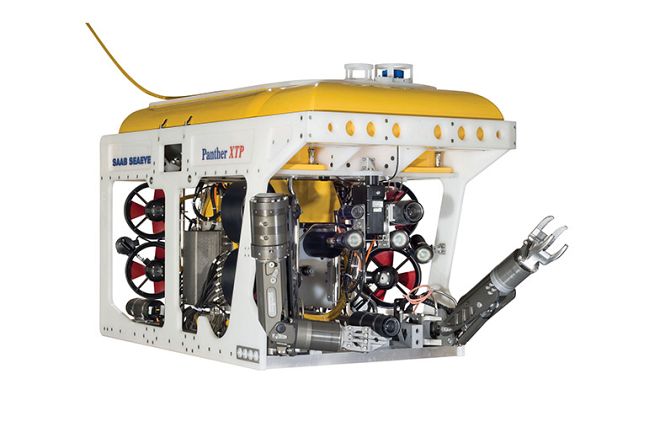

ROV rated to 800m fitted with eight horizontal thrusters and two vertical thrusters supplied with 500 Volts DC. ROV is fitted with two electronics pods; a main and an auxiliary. The main pod provides interfaces for Thrusters, LED lights, multiple cameras, a depth sensor and a solid state compass (located inside the main electronics pod), supporting vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted.
-
Deployment options include an electric winch for free swimming ROV or an A Frame Launch and Recovery System (LARS) for ROVs equipped with a TMS.
