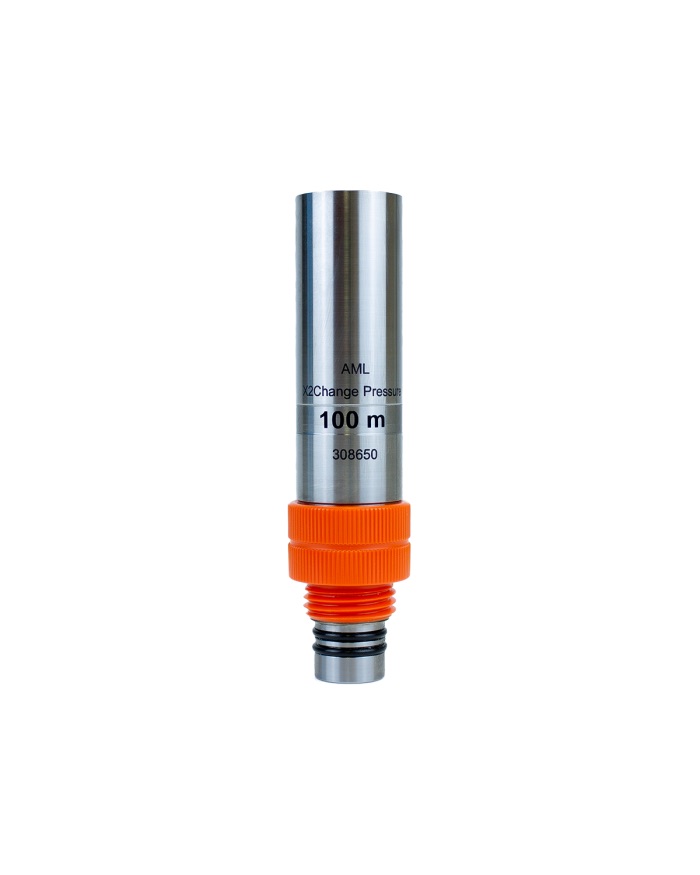

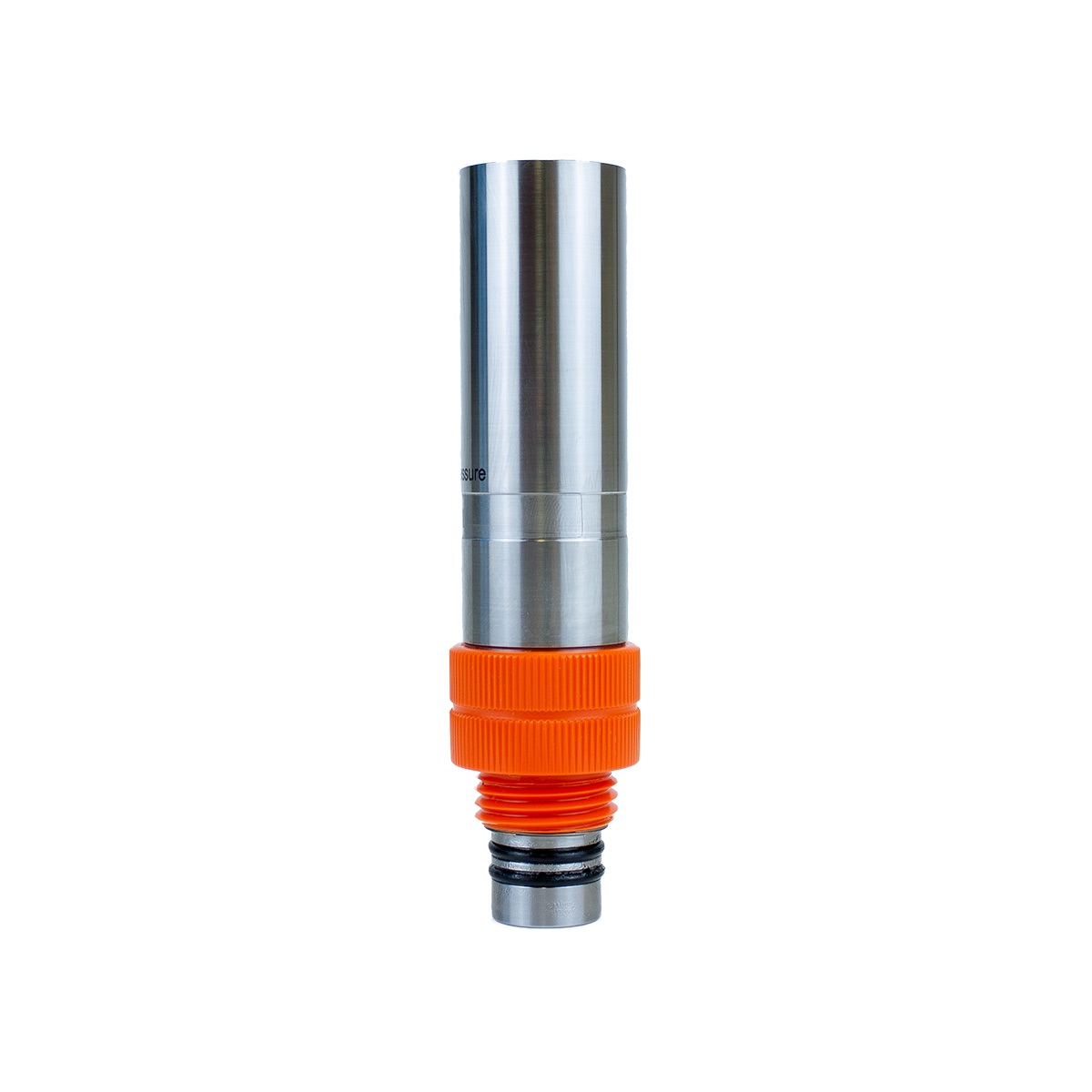

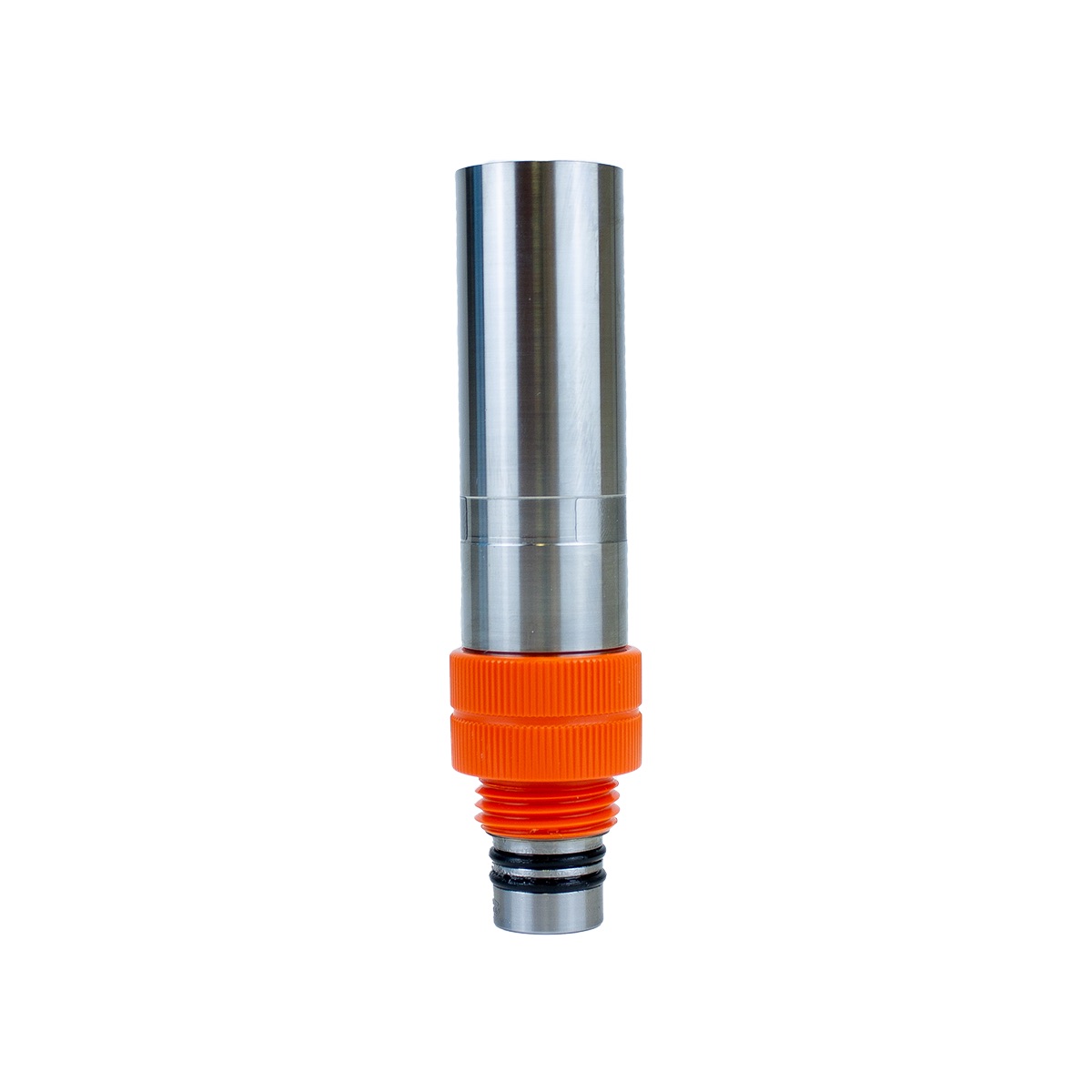

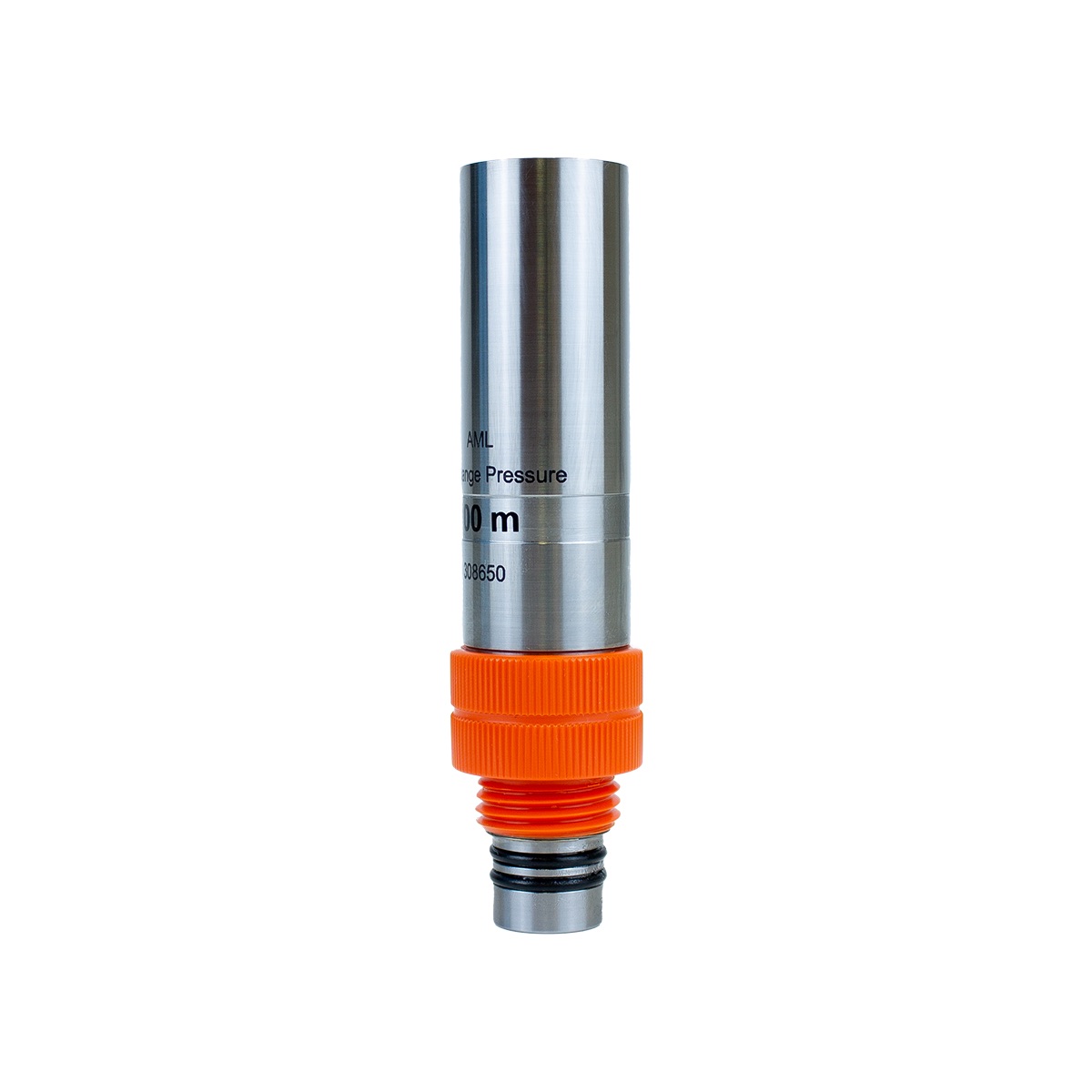

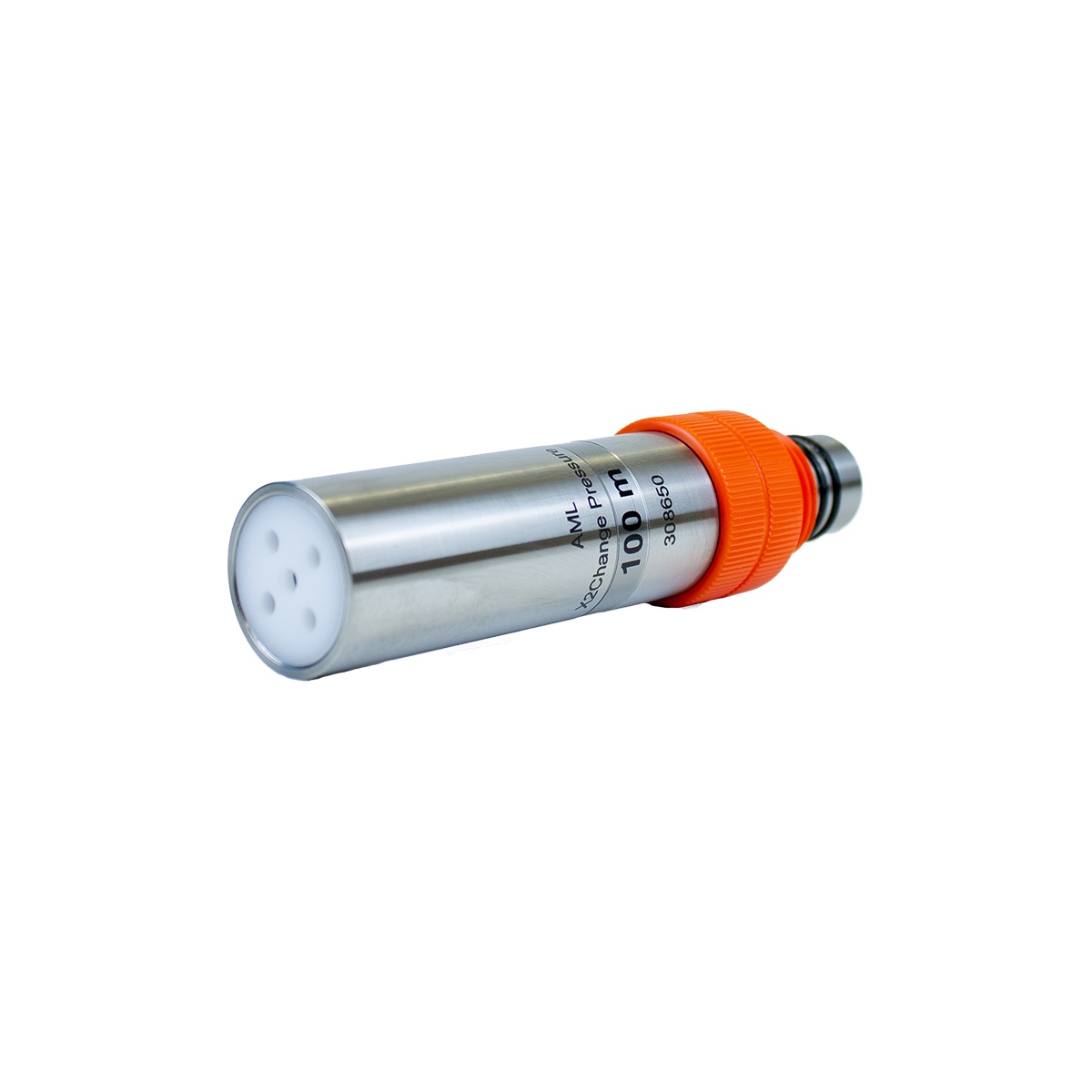

High Accuracy Pressure Sensor

Collect the most accurate, highest quality data possible by using X2changeâ„¢ High Accuracy Pressure Sensors. Sensors calibrated to high accuracy are measured against a laboratory reference, ensuring precise data collection. High accuracy sensors are ideal for applications with minimal changes in the environment, or in deep water where the full scale is larger; therefore high accuracy and precision is more significant. The data collected can also be used to indirectly determine other variables such as fluid/gas flow, speed, and water level. Powered by Keller, all X2changeâ„¢ High Accuracy Pressure sensors have an accuracy of 0.01% FS, resolution of 0.001% FS and a response time of 10 ms. Users can choose between seven depth ratings (100 to 6000 m). Please contact the AML Sales team if you are unsure which option is best for your project.

Delivery time: 10 - 14 business days

SKU: AML-HA-PRESS-SENSOR Category:

Description

Key Benefits:

Zero Down Time – With X2•Series sensors, recalibrated sensors are sent to the instrument instead of sending the instrument to the recalibration centre.

Reduced Logistical Costs – With X2•Series, small sensor heads are shipped instead of heavy instruments.

Increased Flexibility – Field-swappable sensor heads enable any organization – big or small – to become a virtual recalibration centre by stocking spare calibrated sensor heads.

One Instrument, Multiple Applications – Change the sensor type on any instrument to suit specific application requirements. This means instrument duplicates (identical instruments dedicated to different pressure ranges, e.g., separate instruments for Turbidity, pH, Chlorophyll, etc.) become a thing of the past.

Improved Absolute Pressure Accuracy – Choose the best full-scale pressure range to suit your deployment depth.

X2change™ sensor heads are used exclusively with X2•Series / Orange Line instrumentation. Total flexibility of instrument model, sensor type, and sensor range ensures that the right instrument is always available. Please refer to the X2•Series brochure for a list of instruments, applications, and specifications.

Specifications

Max Depth 100 m - 6000 m
Range 0 to 6000 dBar
Precision (±) 0.01 % FS
Accuracy (±) 0.01 % FS
Resolution 0.01 % FS
Response Time 10 ms
Notes Piezoresistive PA10LX
