Description
The Cobalt 14 series of underwater connectors expands the Cobalt line with a larger shell size, offering higher current-carrying capability while delivering the same reliability and affordability that has made the Cobalt line so popular.
With 316 stainless steel shells and PEEK inserts, they withstand long-term use in seawater at depths up to 600 meters. Connector shells are keyed and feature a scoop-proof design, allowing them to be mated blind with no possibility of pin damage.
Cobalt 14 connectors achieve a hermetic seal without the need for potting or overmolding, making them more affordable than traditional molded connectors. The electrical contacts are pressed into a machined PEEK insert, which is in turn pressed into the stainless steel connector shell.
In addition to reducing cost, the unique design of Cobalt 14 connectors increases their reliability. Without a bonded rubber overmold, there is no danger of leakage due to cathodic delamination. A simple, proven O-ring seal between the male and female connectors makes Cobalt connectors both easier to use and more reliable than wet-mate connectors.
Stock connectors and cables typically ship in 2-3 days. Custom items or large orders ship in 1-2 weeks.

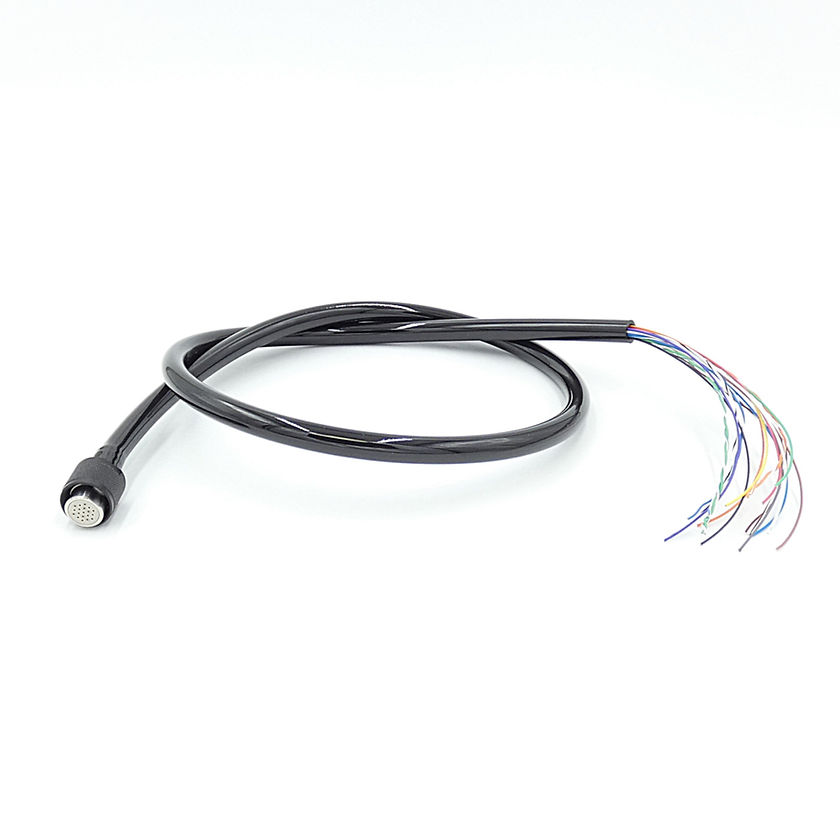

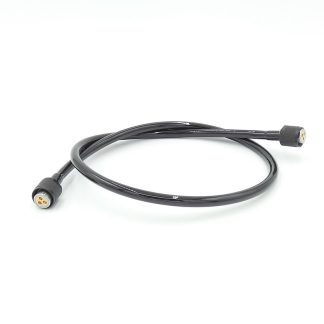

The Cobalt 14 cable is available in 3-pin, 4-pin, 10-pin Hybrid, and 19-pin versions.
