Description
This integration kit includes everything needed to install the Cerulean Surveyor Multibeam Echosounder on the BlueBoat. Everything here is included with the Surveyor when purchased from Blue Robotics, but we’ve made it available separately in case you get the sonar directly from Cerulean.
Included is the mounting bracket for the BlueBoat starboard hull, extensions cables, fuse, and installation hardware. You’ll also need an Ethernet Switch onboard if you don’t already have one!
The Surveyor itself is not included in this product (just so we’re on the same page), but you can find it here!

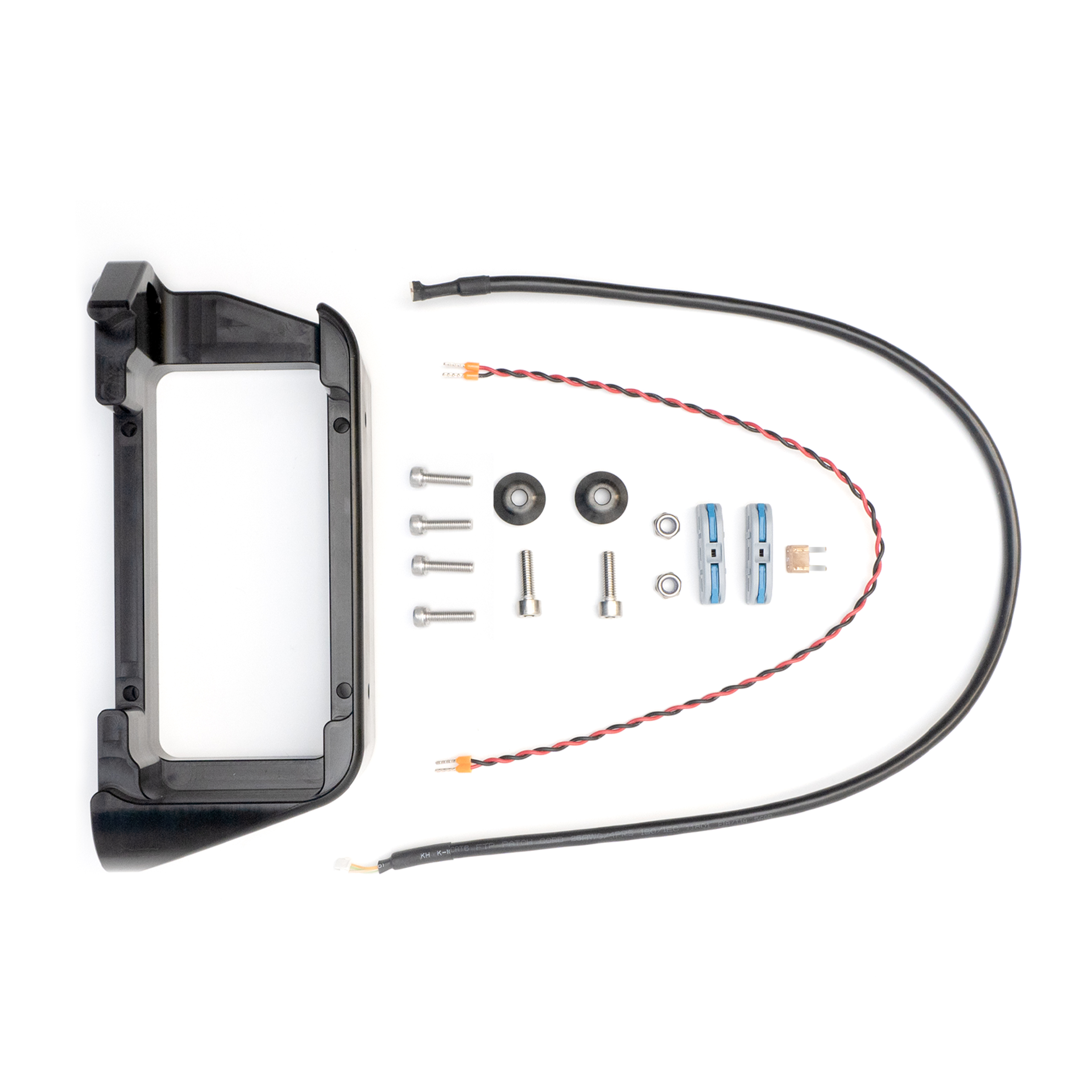

Contents
- 1 x Surveyor 240-16 mounting bracket
- 1 x 600 mm JST GH to JST GH Ethernet extension cable (BR-103531-600)
- 1 x 400 mm power extension cable (BR-103533)
- 1 x 5A Mini Blade fuse (BR-101401-005)
- 2 x Inline snap connector (BR-103548)
- 2 x M6 nylon insert lock nut (BR-101258)
- 2 x BlueBoat Hull Mount Bushing
- 2 x M6x20 socket head cap screw (BR-102241)
- 4 x M5x18 socket head cap screw (BR-101191)
