BlueROV Battery Cable with Cobalt Connectors

Name: BlueROV Battery Cable with Cobalt Connectors
SKU: COB-500X
Availability: OutOfStock

€ 145,00 – € 155,00 excl. VAT

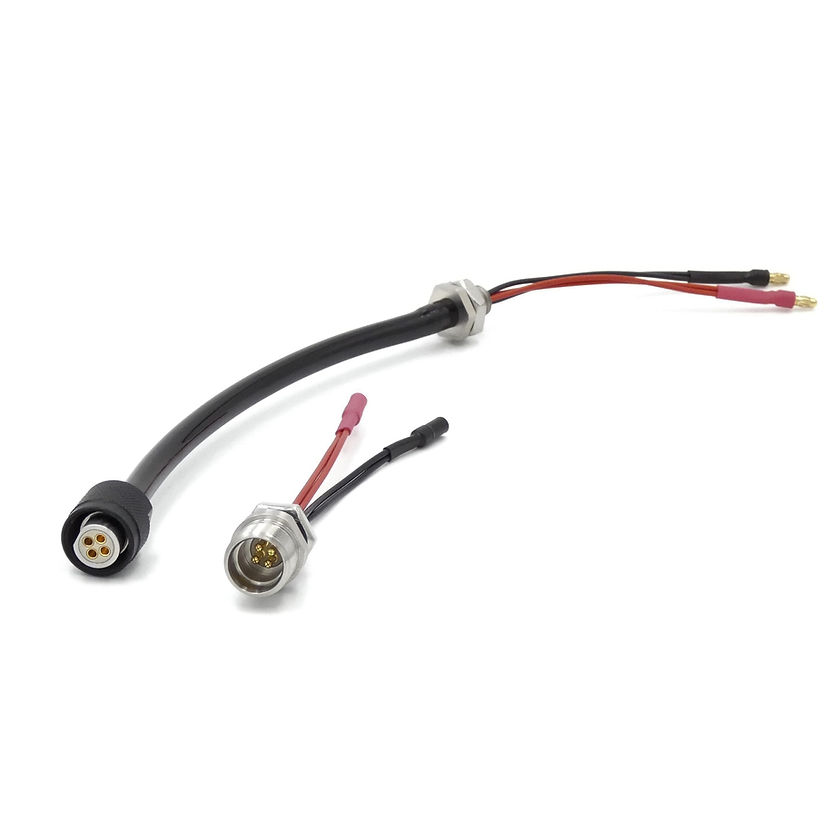

Upgrade your BlueROV with this Cobalt cable set to make your battery field-replaceable! Uses 4-pin Cobalt connectors with paired wires to give a 40-amp continuous current rating.

Includes:

Cobalt 4-pin bulkhead connector, 100 mm wire length, pre-installed 3.5-mm (NOT 5.5 mm!) female bullet connectors
Cobalt 4-pin cable with M10 Simple Penetrator, 190 mm standard OR custom cable length, wires extend 100 mm from Simple Penetrator, pre-installed 3.5-mm (NOT 5.5 mm!)male bullet connectors

Install the bulkhead connector on the Electronics Enclosure and the cable on the Battery Enclosure.

SKUs: COB-5001, COB-500C

Delivery time: 10 - 14 business days

Cable Length

Clear

SKU: COB-500X Category: Specialty Cobalt Connectors and Cables

Description

Upgrade your BlueROV with this Cobalt cable set to make your battery field-replaceable! Uses 4-pin Cobalt connectors with paired wires to give a 40-amp continuous current rating.

Includes:

Cobalt 4-pin bulkhead connector, 100 mm wire length, pre-installed 3.5-mm (NOT 5.5 mm!)female bullet connectors
Cobalt 4-pin cable with M10 Simple Penetrator, 190 mm standard OR custom cable length, wires extend 100 mm from Simple Penetrator, pre-installed 3.5-mm (NOT 5.5 mm!) male bullet connectors

Install the bulkhead connector on the Electronics Enclosure and the cable on the Battery Enclosure.

Specifications

Environmental
Depth Rating	600 meters
Operating Temperature	0° C to +50° C
Electrical
Rated voltage and current	3-pin: 400 VDC, 12 amps 3-pin Power: 400 VDC, 20 amps 4-pin: 400 VDC, 20 amps 6-pin: 400 VDC, 5 amps 6-pin Hybrid: 150 VDC; 2x 20 amps, 4x 3 amps 8-pin: 150 VDC, 3 amps
Wire size and stranding	3-pin: 18 AWG, 19/30 3-pin Power: 16 AWG, 19/29 4-pin: 16 AWG, 19/29 6-pin: 22 AWG, 19/34 6-pin Hybrid: 2x 16 AWG, 19/29; 4x 24 AWG, 7/32 8-pin: 24 AWG, 7/32
Wire configuration	3-pin, 3-pin Power, 4-pin, and 6-pin: unshielded, untwisted 6-pin Hybrid: 2x unshielded, untwisted; 2x unshielded twisted pairs 8-pin: 4x unshielded twisted pairs, Cat 5e
Materials
Bulkhead connector shell	316 stainless steel
Bulkhead connector insert	PEEK
Bulkhead connector pins	gold-plated brass
Cable connector shell	316 stainless steel
Cable connector insert	PEEK
Cable sockets	gold-plated brass
Cable jacket	95A UV-stabilized polyurethane
wire insulation	3-pin, 3-pin Power, 4-pin, and 6-pin: ETFE 6-pin Hybrid: ETFE, polyolefin 8-pin: polyolefin
O ring	nitrile
Locking sleeve	acetal
Dimensions
Bulkhead connector threads	M10 X 1.5
Bulkhead connector hex	16 mm
Locking sleeve threads	M16 X 1.5
Cable outer diameter	3-pin: 6.4 mm 3-pin Power: 6.4 mm 4-pin: 8.0 mm 6-pin: 6.4 mm 6-pin Hybrid: 8.0 mm 8-pin: 8.0 mm

Additional information

Cable Length	Custom (0.1 – 2.0 m), Standard (190 mm)
