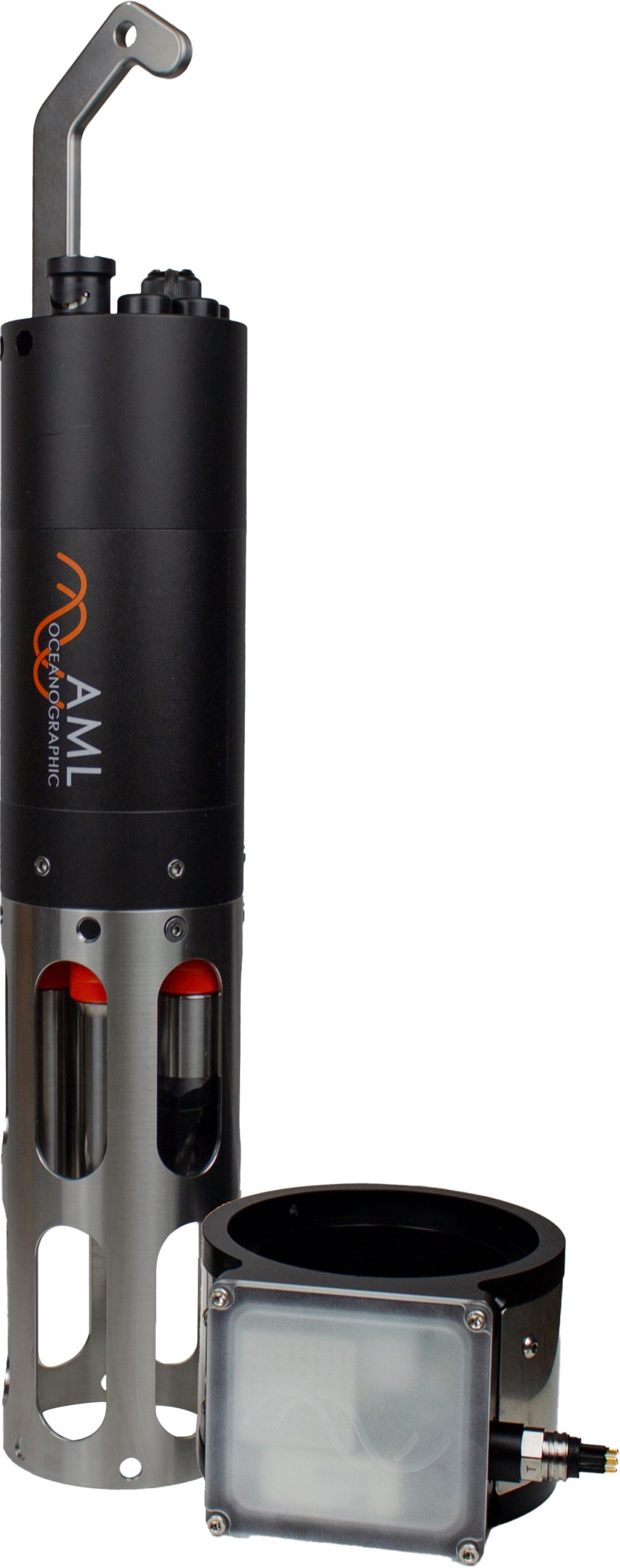

AML-6 RTS Version

This entry-level version of the AML-6 is commonly deployed on buoys and underwater observatories, as well as on ROVS and AUVs. The AML-6 RTS is designed for real-time data streaming and has neither battery nor memory. A bulkhead connector brings power to the sonde and streams data back to the user.

Delivery time: 10 - 14 business days

SKU: AML-6-RTS-VERSION Categories: ,

Description

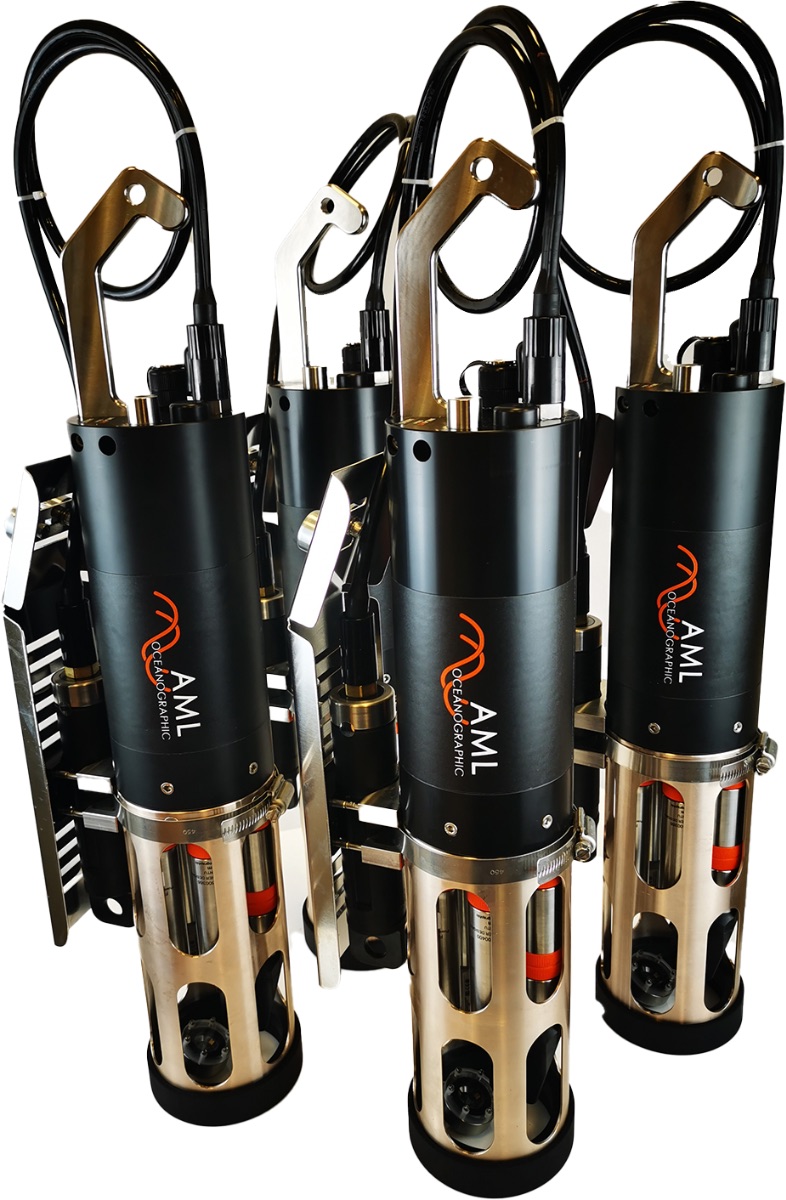

AML-6 Instruments

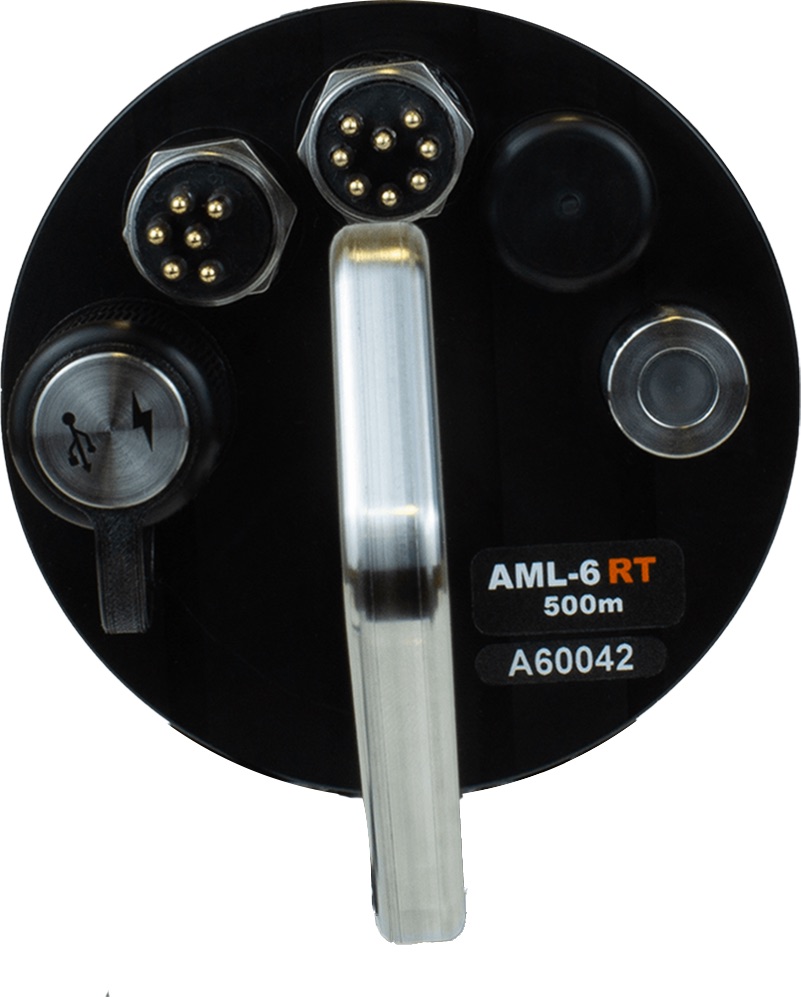

The AML-6 is a multi-parameter sonde, designed to combine CTD data with other oceanographic parameters such as Dissolved Oxygen, pH, ORP, or Fluorometric sensors. This instrument has six sensor ports on the endcap; the sensor payload is modular and can be field-swapped to meet project requirements. The AML-6 can be equipped with UV Biofouling Control, ensuring data quality and extended maintenance-free time-frames, without contaminating the oceans with TBT or other harmful chemicals.

Specifications

Sensor port capacity 6
Optional external sensors Yes
Optional biofouling control Street Lamp UV for Up to 500 m
Data communications RS232 / RS485
Input voltage 8-30 VDC
Housing material Acetal / Titanium
Depth rating 500 m / 6000 m
Protective cage material Stainless Steel / Copper Nickel
Dimensions 600 x 100 mm
Weight in air 4.0 kg (500 m)
4.9 kg (6000 m)
Weight in water 2.1 kg (500 m)
2.8 kg (6000 m)
