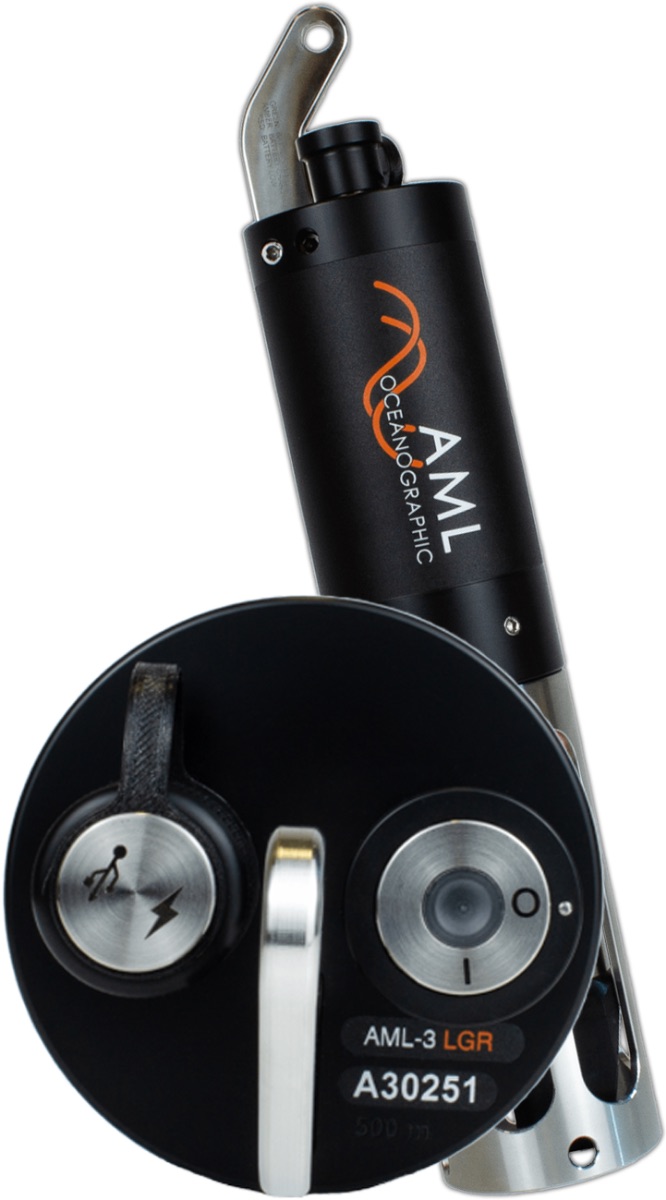

AML-3, The LGR – (Logger) Version
The industry standard for high-accuracy profiling, the LGR is predominantly used for water column work. This version of the AML-3 comes with a Lithium-ion battery and onboard memory. Data transfer is effected via WiFi or USB connectivity. To maximize reliability, instrument on / off is managed with a magnetic switch rather than a bulkhead connector.
Delivery time: 10 - 14 business days

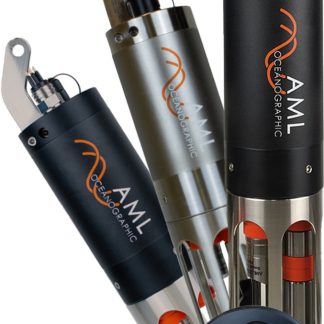

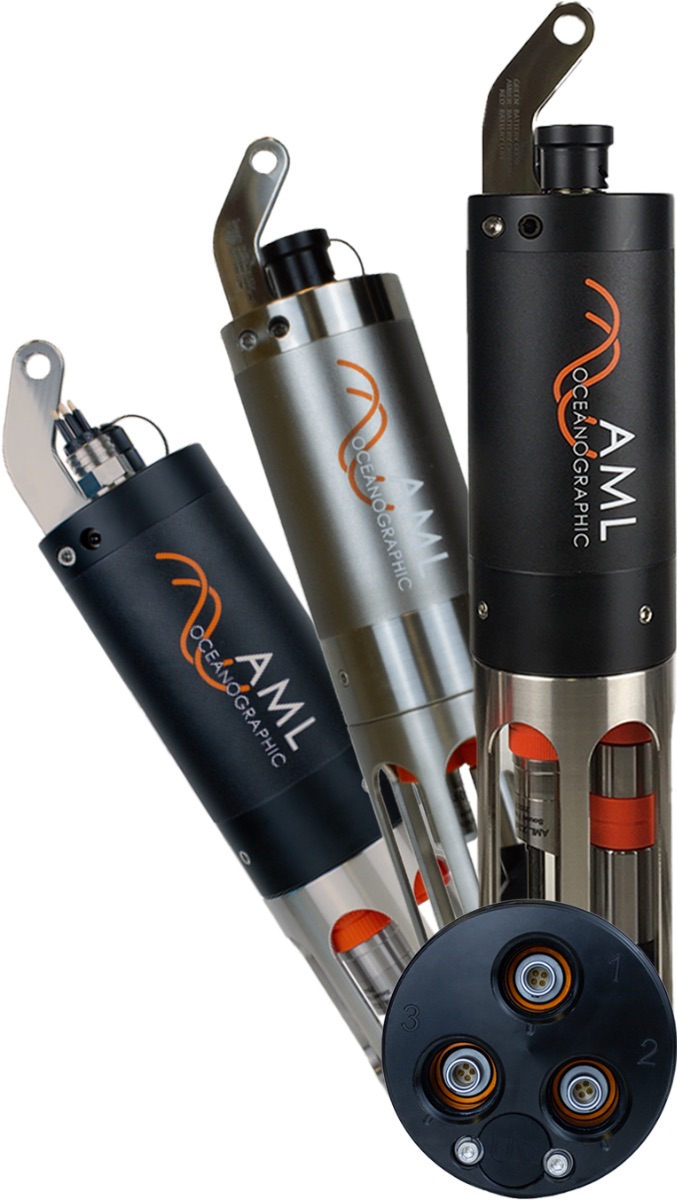

AML-3 Instruments
The AML-3 is one of the most versatile, multi-sensor oceanographic instruments currently available. The AML-3 has three sensor ports on the endcap; the sensor payload is modular and can be field-swapped to meet project requirements. Certain sensors such as CT and SVT are dual parameters, thus enabling the direct measurement of up to four distinct parameters from the instrument’s end cap. In addition, the AML-3 calculates salinity and density.
| Sensor port capacity | 3 |
| Optional biofouling control | Street Lamp UV for Up to 500 m |
| GPS | Yes (500 m) |
| Data communications | WiFi (500 m), USB-C |
| Housing material | Acetal / Titanium |
| Depth rating | 500 m / 6000 m |
| Protective cage material | Stainless Steel |
| Dimensions |
Sm Cage: 343 x 76 mm Md Cage: 398 x 76 mm Lg Cage: 464 x 76 mm |
| Weight in air |
1.4 kg (500 m) 2.5 kg (6000 m) |
| Weight in water |
0.7 kg (500 m) 1.9 kg (6000 m) |
